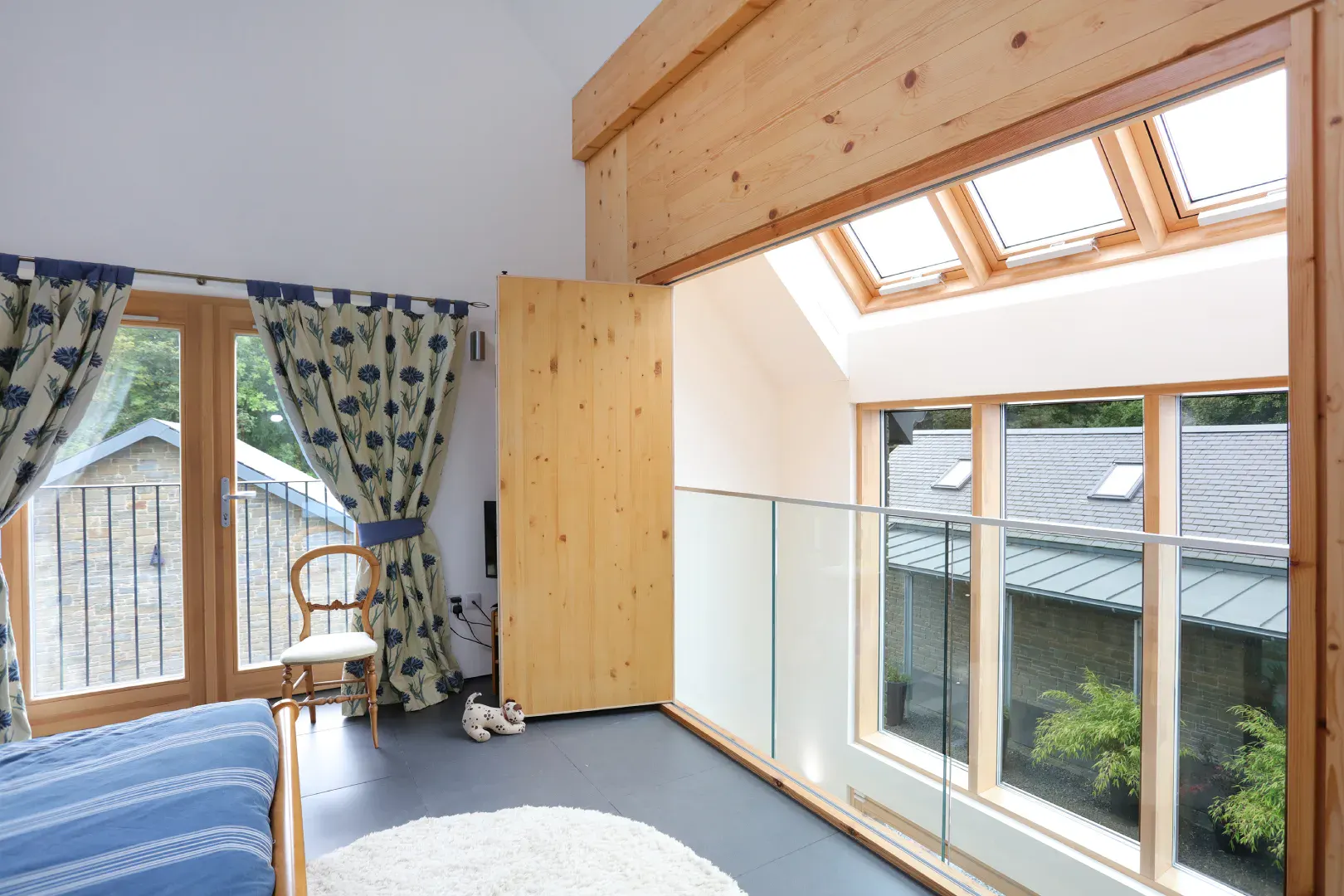

Timber Curtain Walling Engineered for High-Performance Building Facades

Zyle Fenster's timber curtain walling system combines the natural warmth and sustainability of engineered timber with the durability and weather resistance of aluminium cladding. Designed for seamless integration with windows and doors, and available in multiple timber species with any RAL colour for external aluminium cladding, this system offers a bespoke configuration for every project – from private self-builds to architect-designed residential projects across the UK.

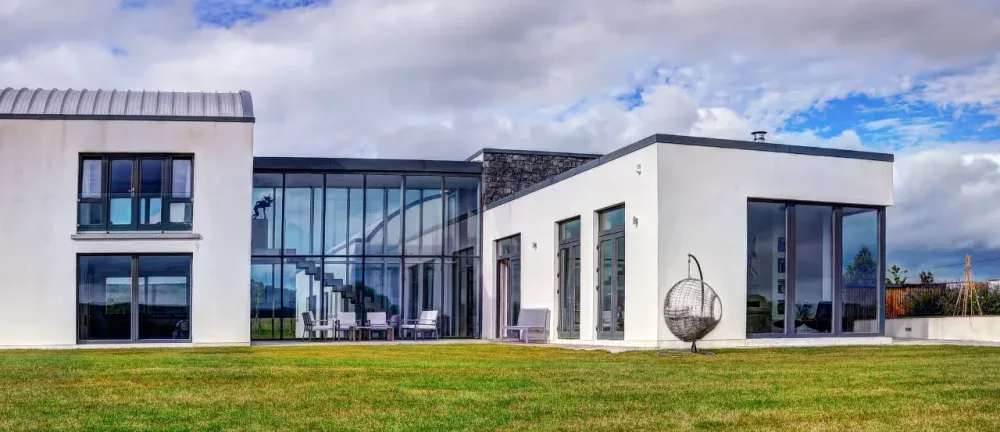

Reynaers CW50 timber curtain walls

U-Value as low as 0.63 W/m²K – Passivhaus compliant

Available in multiple timber species and RAL finishes

Seamless integration with windows, doors, and sliding systems

FSC-certified timber – sustainability built in

Timber Curtain Walling – Technical Specifications

Full product guidance and specification data for Zyle Fenster's timber curtain walling system, as standard configuration.

Product guidance – as standard
Face width50 mm, 60 mm and 80 mm.
Glass thicknessFrom 9 mm to 64 mm.
Water tightnessRE1200.
Air permeabilityAE.
Wind load1500Pa / 2250Pa.
Thermal Insulation0.63W/m²K using Ug value: 0,5 W/m²K | Glass spacer: Swiss spacer Ultimate
Product specification
MaterialEngineered redwood - Standard. Engineered hardwood, European oak.
Glazing48mm Triple glazed, 4/18/4/18/4 Low-E - as standard.
External finishPolyester powder coating - as standard. Timber capping available.
Perimeter spacer barsWhite warm edge perimeter spacer- as standard. Silver and black spacer optional.
Internal finishThree coat spray applied factory finish using water-based Teknos micro-porous paint/stain.

Timber Curtain Walling – Technical Downloads

Download full specification sheets and technical data for Zyle Fenster's timber curtain walling system for use in your project documentation.

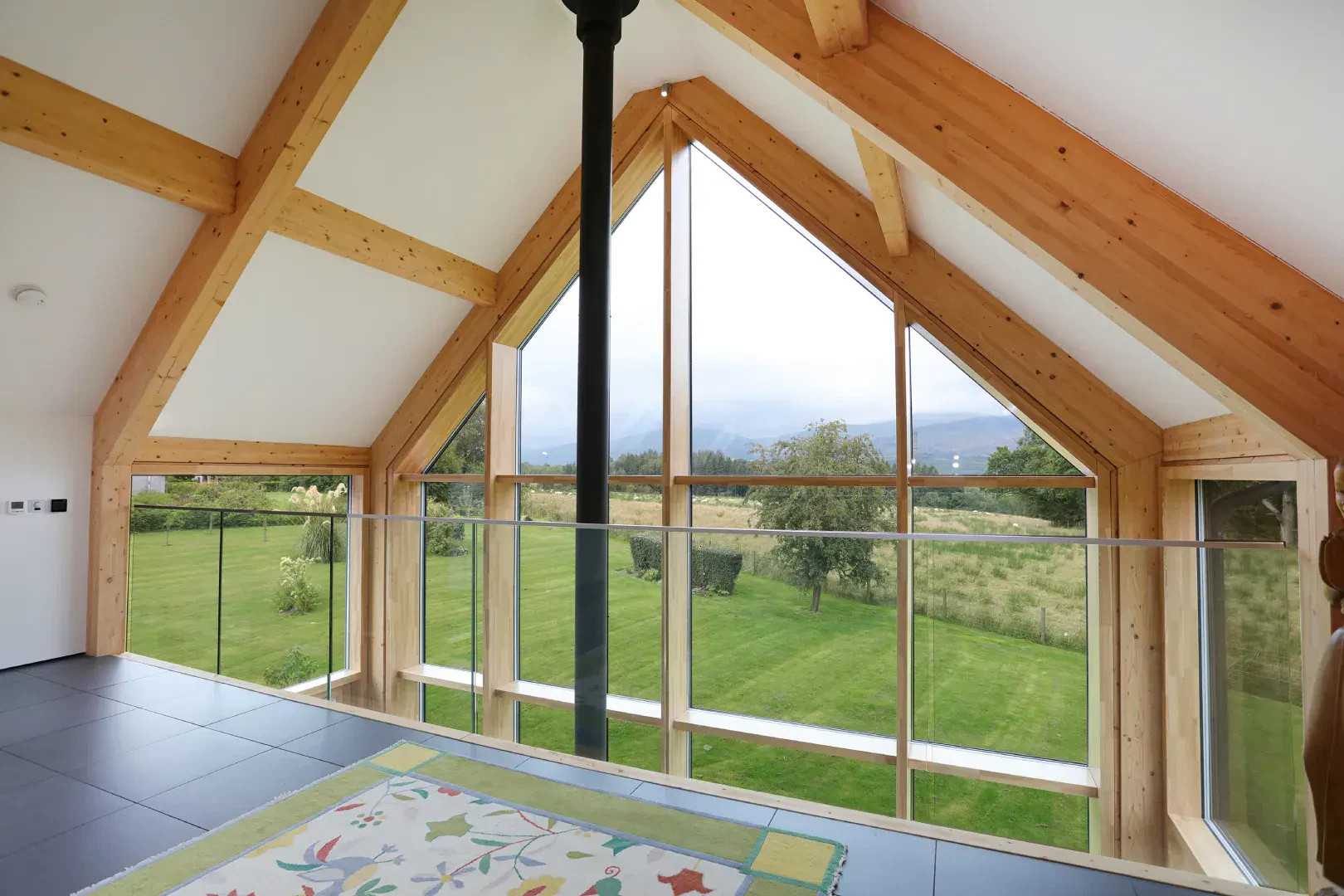

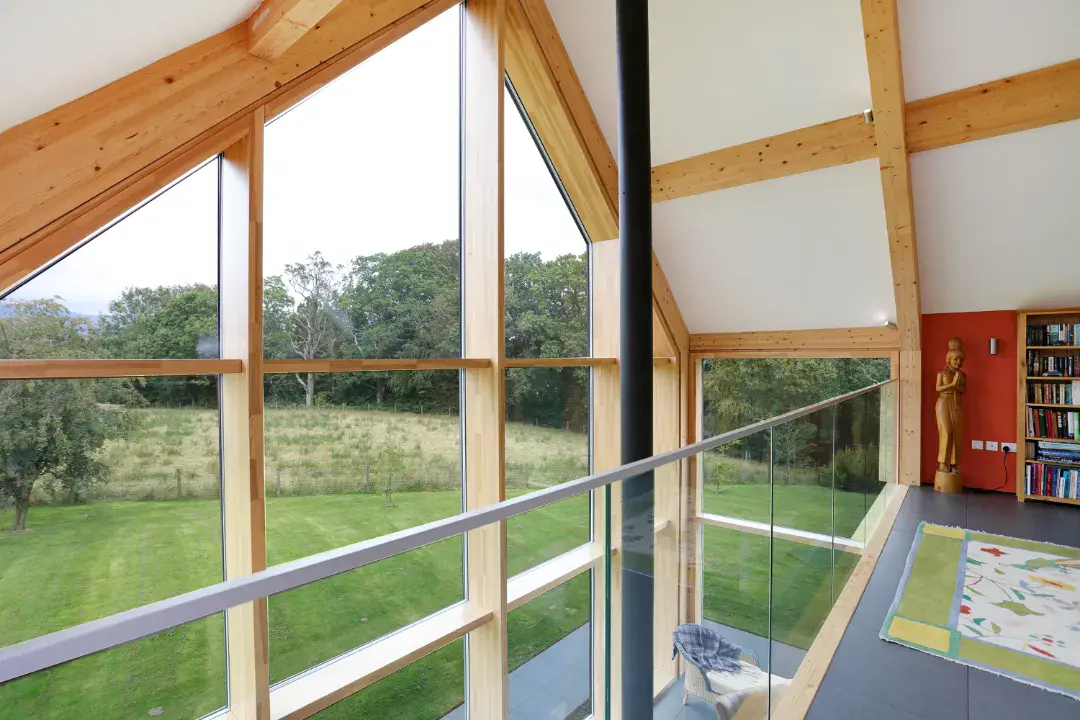

timber curtain wall

Downloads

PDF 1 file
Zyle-Timber-curtain-wall
CAD 1 file
Zyle Timber Curtain Wall

Key Benefits of Timber Curtain Walling for Residential Projects

Timber is a material with low thermal conductivity, making it a naturally excellent choice as a core structural element in high-performance curtain walling systems. Combined with a concealed aluminium cladding system externally, this wood-aluminium composite construction delivers the durability and weather resistance of aluminium alongside the warmth, sustainability, and excellent thermal performance of natural timber.

Our timber curtain walling system achieves a U-value as low as 0.63 W/m²K – meeting and exceeding the requirements of the Passivhaus standard. The slim frames prioritise glazing area, allowing maximum natural light into the building while reducing heat loss across the facade. The result is a curtain wall system that actively contributes to energy efficiency, reduced heating demand, and improved building performance ratings across UK residential projects.

Contact Us

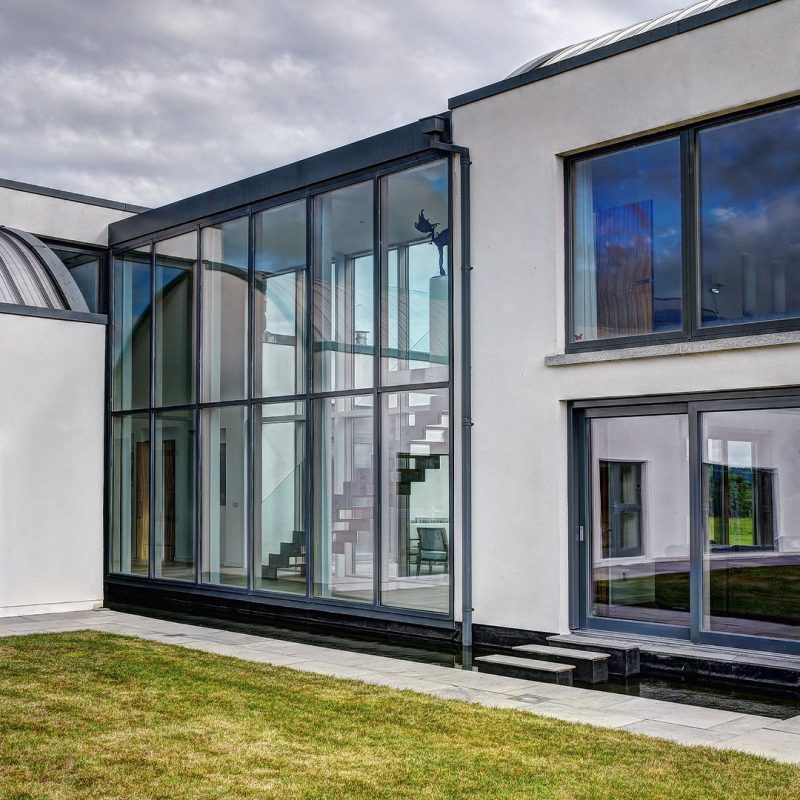

Reynaers CW50 timber curtain walls

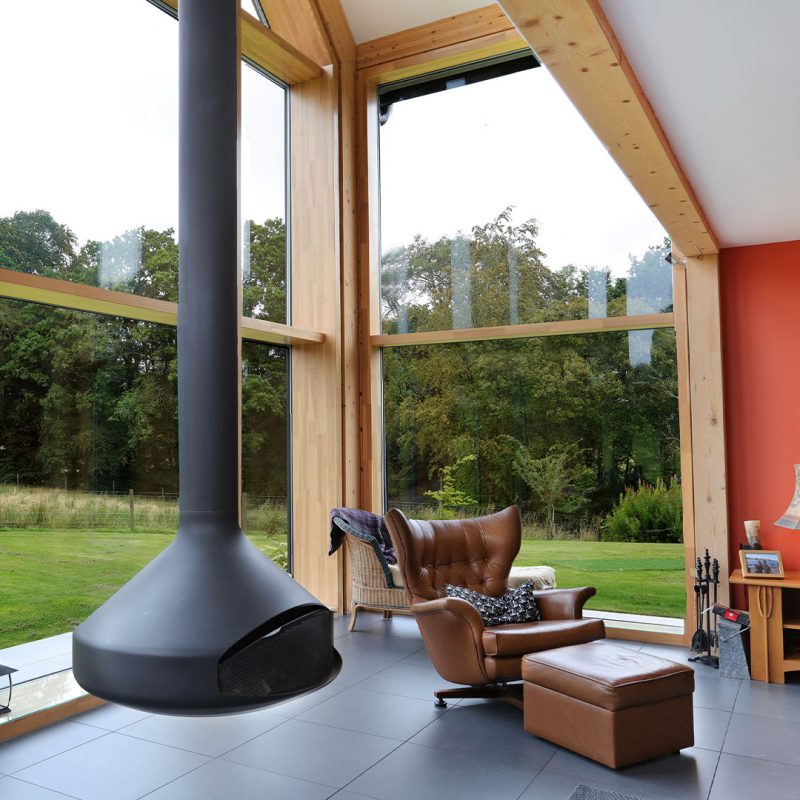

Reynaers CW50 timber curtain walls

Bespoke Timber Curtain Wall Designs for Every Project

Available in engineered redwood as standard – with engineered hardwood and European oak as additional options – our timber curtain walling system can be specified with any RAL colour for the external aluminium cladding, and finished internally using a factory-applied, three-coat water-based Teknos microporous paint or stain system. This level of configuration flexibility makes it an excellent choice for architect-led and self-build projects where material quality and aesthetic precision matter.

Any combination of tilt and turn windows, casement windows, entrance doors, and sliding doors can be integrated seamlessly into the curtain walling system – maintaining consistent sightlines and facade continuity. Our specialist curtain walling team provides full technical support throughout specification, supply, and installation, ensuring every timber curtain wall system we deliver performs as designed for the lifetime of the building.

Get a Quote

Frequently Asked Questions

Find answers to the most common questions about our timber curtain walling systems. For project-specific technical queries, our team is available to support from first enquiry through to completion.

Contact Us

Our Projects

interior timber windows
black timber windows
modern living room with timber windows
modern stone glass house

Stirling, Scotland

Find out more about Stirling, Scotland

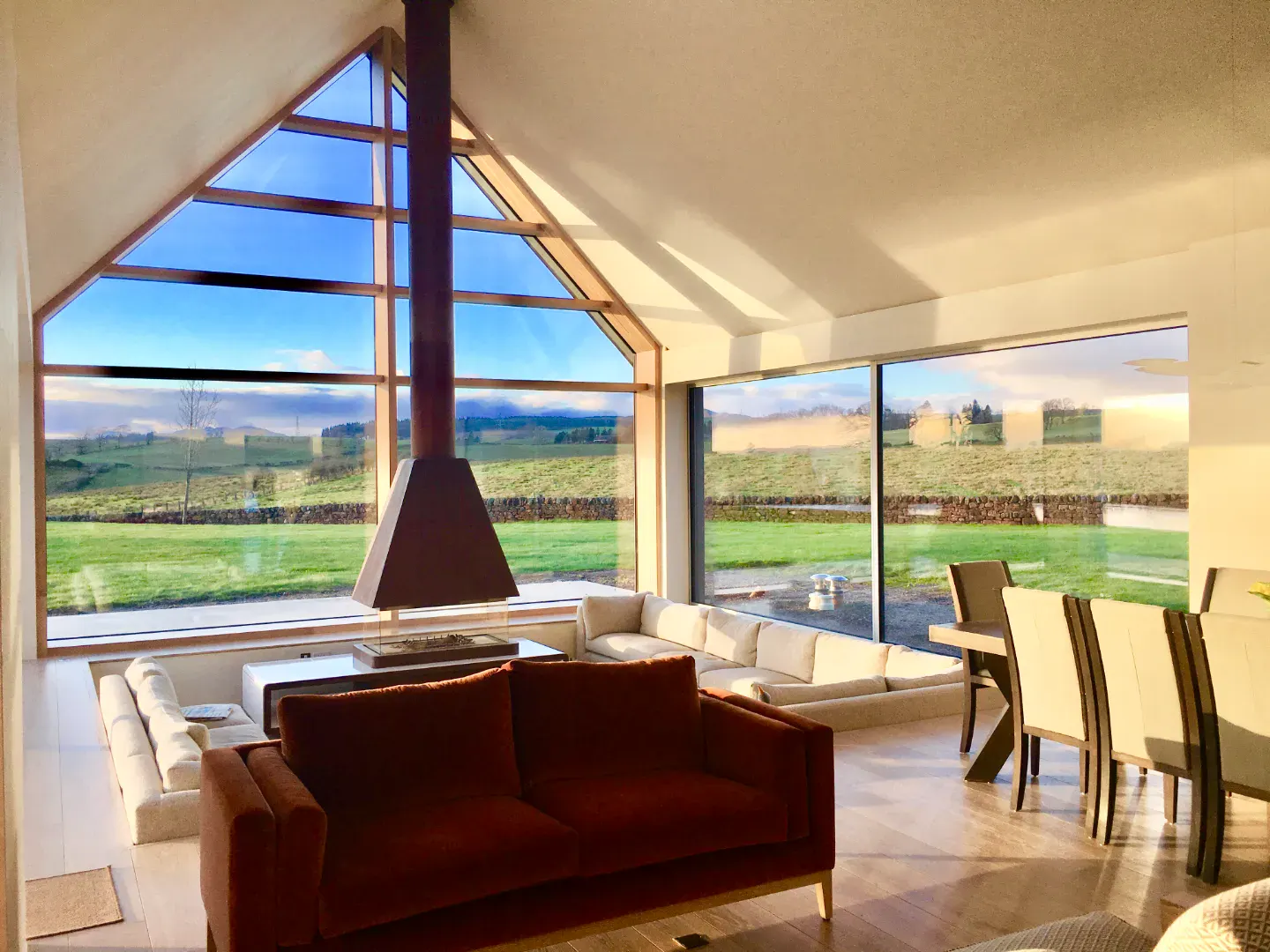

Hamill House, Scotland

Find out more about Hamill House, Scotland

Edinburgh, Scotland

Find out more about Edinburgh, Scotland

Dollar, Scotland

Whether incorporated into a modern contemporary new build or unlocking a period property, our curtain wall can reinvigorate a property by letting the natural daylight come flooding in.

Find out more about Dollar, Scotland

A complete service

from design to installation.
