Precision Engineering Meets High Insulation Performance

The Schüco AWS 70 HI aluminium window system brings together optimum thermal insulation, narrow frame sightlines, and architectural flexibility in a single, refined solution. Designed to meet the highest technical requirements of modern residential and commercial buildings, it accommodates inward and outward-opening casement configurations with concealed or classic manual fittings, as well as integrated electromechanical hardware – delivering smooth operation and a clean, timeless look.

Schuco High Insulation AWS70 door

Outstanding thermal insulation as standard

Narrow sightlines, maximum natural light

Concealed fittings for a sleek, discreet finish

Reliable protection against wind, water and noise

Technical Specifications

Full technical information for the Schüco AWS 70 HI aluminium window system is detailed in the specification table below.

SpecificationDetail
Basic system depth70 mm
Min. face width (frame)108 mm
Min. face width (vent)115 mm
Glass thickness24–48 mm
Thermal transmittance (Uw)From 1.1 W/m²K (depending on configuration and glazing)
Double glazing UwFrom 1.3 W/m²K
Triple glazing UwFrom 1.1 W/m²K
Air permeabilityClass 4 (up to 600 Pa)
Wind load resistanceUp to 2000 Pa (Class 5)
Water tightnessUp to 600 Pa (Class 9A)
Acoustic performanceRw up to 44 dB (depending on glazing type)
SecuritySecured by Design accreditation available
FinishingFull range of polyester powder coat RAL colours and anodised finishes
Dual colourAvailable – different colour inside and out
Profile assemblyWeather-stripped profiles with polyamide thermal breaks
Glazing methodDrained and ventilated with EPDM synthetic rubber gaskets
Opening typesInward and outward-opening casement
FittingsClassic manual or integrated electromechanical

Product Downloads

Download the full Schüco AWS 70 HI product brochure, technical data sheets, and specification documentation below.

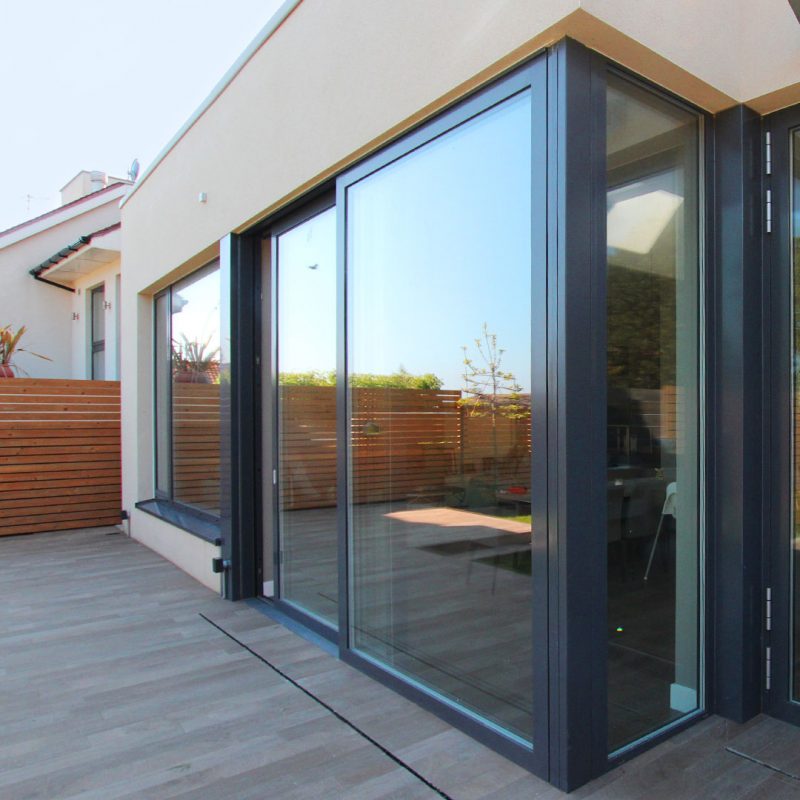

Schuco High Insulation AWS70 aluminium door

Downloads

PDF 2 files
Schuco High Insulation AWS70 HI-window Schueco Windows AWS 70 Range
CAD 1 file
Schuco High Insulation AWS70.HI Window

Designed for Demanding Architecture

The Schüco AWS 70 HI is the right choice for architects and specifiers working on projects where thermal insulation, profile face widths, and design flexibility must all meet the highest standards. The system’s narrow frame sightlines allow greater expanses of glass, maximising natural light while maintaining the individual character of a building.

Whether specified for high-end residential properties or commercial buildings, the AWS 70 HI accommodates a wide range of architectural styles – from clean-lined contemporary homes to more considered, detail-driven designs. Concealed vents and discreet hardware options ensure the aesthetic appeal of the finished installation is never compromised.

Contact Us
Schuco High Insulation AWS70

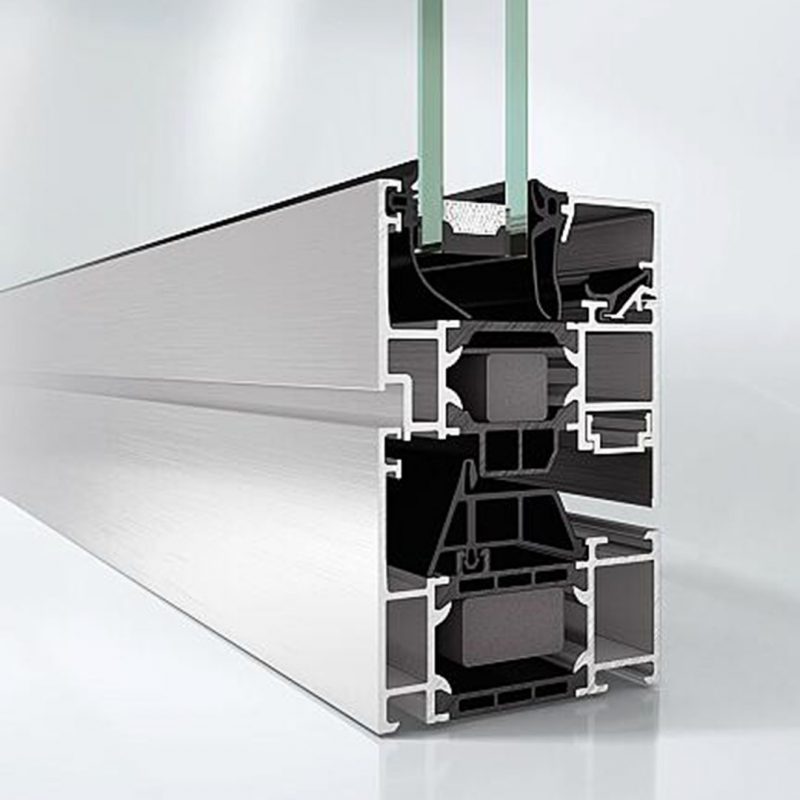

Schuco High Insulation AWS70 frame

Thermal Performance and Long-Term Reliability

With polyamide thermal break technology running through the aluminium frames, the Schüco AWS 70 HI delivers unique thermal insulation performance that significantly reduces heat loss and contributes to improved energy efficiency across a wide range of building types. Triple glazing options further strengthen its credentials for low-energy and near-passive house projects.

Finished in a full range of powder coating RAL colour options – including dual-colour combinations for a different appearance inside and out – the AWS 70 HI offers reliable protection against weather conditions while requiring minimal maintenance over its lifetime. It is a system built to perform and endure.
